3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price

Brand Name : DONGFENG

Model Number : EQ3095

Place of Origin : China

MOQ : 1 unit

Price : FOB Shanghai: USD18000~20000/unit

Supply Ability : 100 units/month

Delivery Time : 30 day after deposit

Mixer capacity : 3m3

Wheel base : 3300mm

Engine model : Cummins B125-33

Steering : RHD and LHD are available

Contact Now

3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price

Advantages:

Small capacitiy low cost (very difficult find such small concrete mixer trucks in Chinese famous manufacturer at present.)

RHD & LHD are available (We can make not only LHD but also RHD)

Good Performance (We adopt Cummins engine which with high durability and good performance even in rough roads)

Specifications:

Model:	EQ3095TL
Engine
Model	Cummins B125-33
Type	Diesel, Direct Injection,Turbo charged with Intercooler
Max. Engine Output (HP or KW/rpm)	92 KW(125 HP)
Max. Tourque (N.m/rpm):	410 Nm @ 1400-1600 rpm
Cylinder Displacement L/cc	3900ml
Emission:	Euro 3
Gear Box	MT / Forward 5 & Reverse 1
Model	WLY5S550
Suspension	Strengthen spring
Type	Spring leaf tablet: 9/11+8
Brakes	Front&Rear drum,dual-circult service brakding system
Clutch
Type:	Single,dry,diaphragm spring clutch⊙350
Overall Dimensions (LxWxH) mm:	5560×2100×2650
axle (Front/Rear)kg:	2800 / 8000
Driving Type:	4×2
Wheel Base (mm):	3300
Min ground clearence (mm):	248
Vehicle Weight
Curb weight (kg):	3800
Pay Load Capacity (kg):	5600
Gross vehicle weight (kg):	9400
Cabin:	1+2 seats / 2 doors
Steering
Type:	power steering gear
Wheels & Tyres
Front:	Tire Number: 2, Tire Size: 8.25R16
Rear:	Tire Number: 2, Tire Size: 8.25R16
Mixing tanker specification
Mixing capacity(m³)	3
tanker material	16MnQ345
Angel of inclination of mixing drum(°)	16-18
Feeding speed(m³/min)	2
Discharge speed(m³/min)	2
Residual ratio(%)	＜0.7
Mixing speed(r/min)	0-18
Transport mixing speed(r/min)	3-4
Water tanker(L)	500

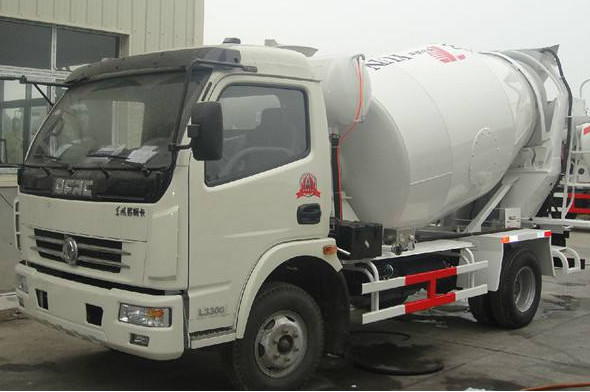

Product Picture:
3m3 concrete mixer truck/small mixer/concrete transport truck/4X2/Cummins engine/cheap price
